1/4 CNC Machining Brass Quick Coupler Compatible With Parkera Hansen St

Brand Name : carterberg

Model Number : CB-3

Certification : IATF16949

Place of Origin : Shanghai, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5000~20000 pc/month

Delivery Time : 7-20 work days

Packaging Details : carton

Name : Brass Coupler

Material : brass

Connection : Female/Male

Technics : CNC Machining

Size : 1/8' ~ 1'

Temperature : -20~120°C

Standard : Japanese type

Compatible : NITTO TSP

Contact Now

Compatible with PARKERA HANSEN ST and FOSTER FST Series American type Brass coupling

Applications: The LST Series are non-valced couplings for applications where maximum flow is required. Their smooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steam washers, carpet cleaners and mold coolant lines and many other non-valved applications


Specifications:

Body Size(in)1/81/43/81/2
Rate Pressure(PSI)
Brass Cplr/Npl1000100010001000
SS Cplr/Npl2000200015001500
Rated Flow(GPM)361212
Temperature Range(std seals)-20℃ to +120℃

Features:

1.The smooth, open bore with no valving in either half offers minimal pressure drop and allows easy cleaning in applications where the same lines are used for more than one media.
2.LST couplers and nipples are machined from solid bar stock providing the quality coupling that is durable.
3.LST nipples are available in brass and zinc-Plated steel. The ball locking grooves of the steel LST nipples are case hardened for resistance to brinelling where high cycle rates and pressure surges are encountered.
4.The LST is an “interchange” coupling because the dimensionally and functionally can interchange with similar couplings made by other manufactures.
5.Compatible with PARKER ST Series, HANSEN ST Series, FOSTER FST Series.


1/4 CNC Machining Brass Quick Coupler Compatible With Parkera Hansen St

PART NO.LS￠ DHEX1AT
LST-01SF27181410NPT1/8
LST-02SF37241912NPT1/4
LST-03SF41.5292413NPT3/8
LST-04SF51332915NPT1/2
LST-06SF53.440.93819NPT3/4
LST-08SF6650.544.4522NPT1



1/4 CNC Machining Brass Quick Coupler Compatible With Parkera Hansen St

PART NO.LS￠ DHEX1AT
LST-01SM29181410NPT1/8
LST-02SM39.5241912NPT1/4
LST-03SM43292413NPT3/8
LST-04SM53332915NPT1/2
LST-06SM56.740.93819NPT3/4
LST-08SM61.150.544.4524NPT1



1/4 CNC Machining Brass Quick Coupler Compatible With Parkera Hansen St

PART NO.LS￠ DHEX1AT
LST-01PF27171410NPT1/8
LST-02PF3719.51712NPT1/4
LST-03PF41.522.52213NPT3/8
LST-04PF51262715NPT1/2
LST-06PF5228.53020NPT3/4
LST-08PF6030.53822NPT1

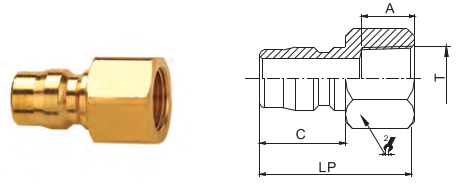

1/4 CNC Machining Brass Quick Coupler Compatible With Parkera Hansen St

PART NO.LS￠ DHEX1AT
LST-01PM29171110NPT1/8
LST-02PM39.519.51412NPT1/4
LST-03PM4322.51713NPT3/8
LST-04PM53262215NPT1/2
LST-06PM57.228.52719NPT3/4
LST-08PM62.430.53522NPT1
