RK Series Flat Face Thread-to-Connect Hydraulic Couplings for High-Pressure Applications

Brand Name : carterberg

Model Number : CB-RK

Certification : IATF16949

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 5000~20000 pc/month

Delivery Time : 7-20 work days

Packaging Details : carton

Occlusion : flat face

Locking : screw

Material : steel

Finishing : Zn-Ni

Threads : BSP-METRICS

Standard seals : NBR

Working temperature : -25℃+100℃

Optional seals : FKM,EPDM or more

Working pressure : 420bar

Connection under pressure : allowed(both male or female side)

Contact Now

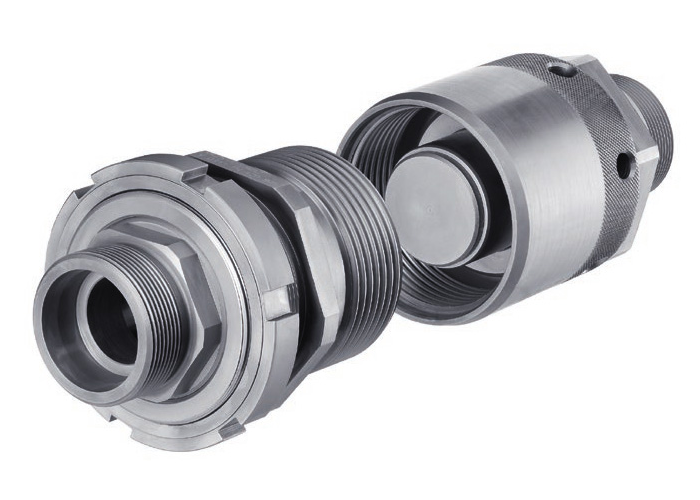

RK Series Flat Face Thread-to-Connect Hydraulic Couplings for High-Pressure Applications


The RK Series Flat Face Thread-to-Connect Hydraulic Couplings are built for demanding hydraulic systems operating up to 420 bar. Their flat face valve system ensures minimal fluid loss and easy cleaning, while the thread locking design provides a secure, vibration-resistant connection even under residual pressure—both male and female sides can be connected under pressure. Manufactured from durable carbon steel with a Zn-Ni plated finish, these couplings deliver excellent corrosion resistance and long-lasting reliability. Available with BSP, NPT, and SAE threads, the RK Series comes with NBR seals as standard and optional FKM or EPDM for wider compatibility. With an operating temperature range of -25°C to +100°C, they are ideal for construction machinery, industrial equipment, and agricultural hydraulics requiring safe and clean connections.

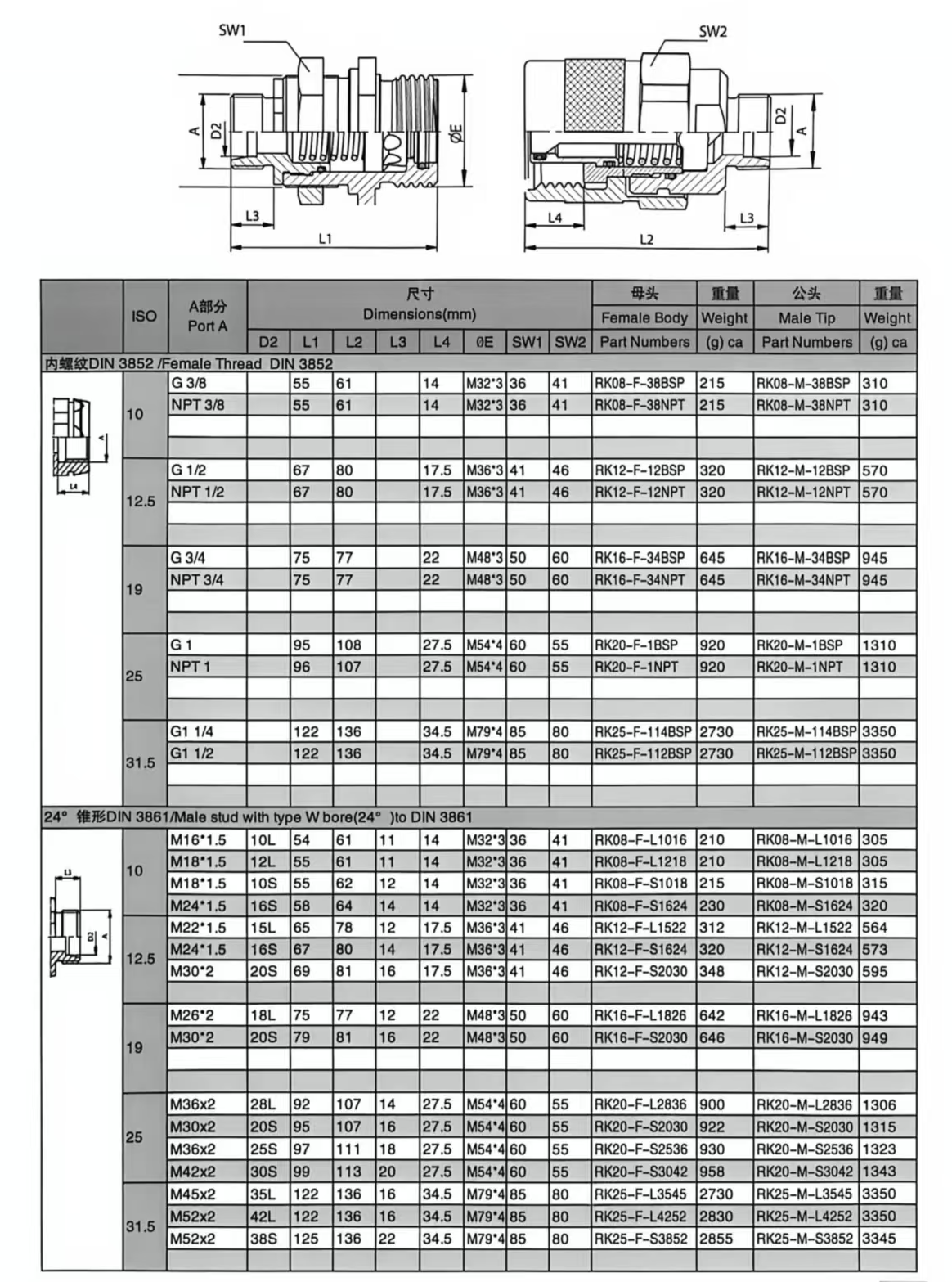

RK Series Flat Face Thread-to-Connect Hydraulic Couplings for High-Pressure Applications


Nominal size Working pressure Rated flow(ISO) Max flow rate Burst pressure Fluid spillage
RK ISO Mpa l/min l/min Male(Mpa) Female(Mpa) Coupled(Mpa) cc
08 10 42 23 46 160 160 160 0.02
12 12.5 42 45 90 126 126 126 0.02
16

19

 42 106 160 126 126 126 0.06
20 25 42 189 280 120 120 130 0.1
25 31.5 42 288 575 110 110 130 1

RK Series Flat Face Thread-to-Connect Hydraulic Couplings for High-Pressure Applications


Our Services:


1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
